Ordinary safe deposit box |
|||||||||||||||||||||||||||||||||
Ordinary safe is also known as a fixed safe deposit box, I produced a fixed safe deposit box according to the form of safe or control the management of the box is divided into:
1, mechanical double-headed lock safe deposit box;
2, fingerprint cable electric control lock safe deposit box;
3, fingerprint wireless control lock safe deposit box.

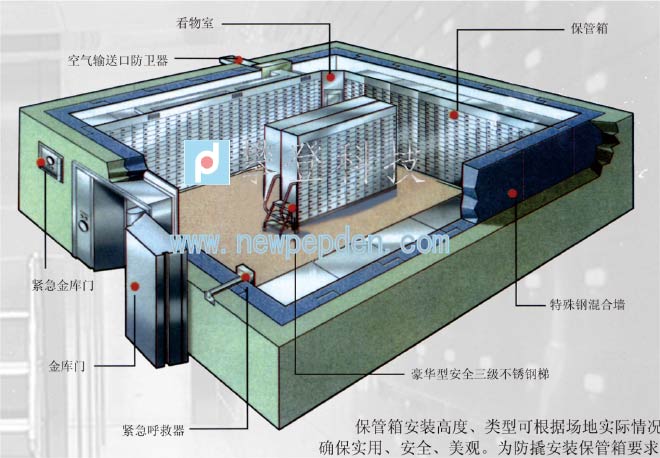

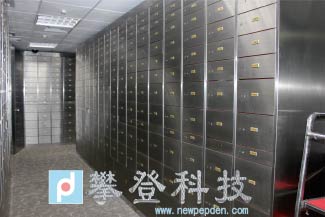

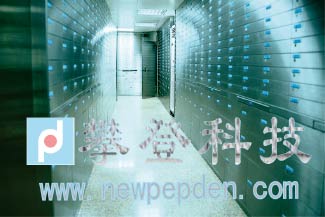

 Safe deposit box placed in the vault, the main configuration and distribution
   Pepden technology safe deposit box: through the public security department safety certification and industry testing. For the column safe, effective width of 300 or 600mm, depth 600mm.
Box: for the column box, the width of 320mm, depth 610mm. Column structure is from top to bottom for the overall structure, because the left and right for the double partition to ensure that the safe between the left and right completely isolated, the traditional box (horizontal) structure only about a layer of partitions can be destroyed from the left safe There is a risk to the right side of the box lock. The main structural parts of the box is made of cold-rolled sheet with thickness of 2-3mm. Outer part of the plate is flatness ≤0.5mm. The overall structure of the box is made of automatic production, the stamping parts are flattened, and the embedded CO2 gas shielded welding process is used to ensure the overall solidity is strengthened, and the deformation is easy, the solder joints are solid and reliable, the solder joints are even and the soldering or welding is free. For the C-type large box-type vertical plate plus additional ribs to enhance the firmness of the box and seismic capacity to ensure that the box will never deformation.

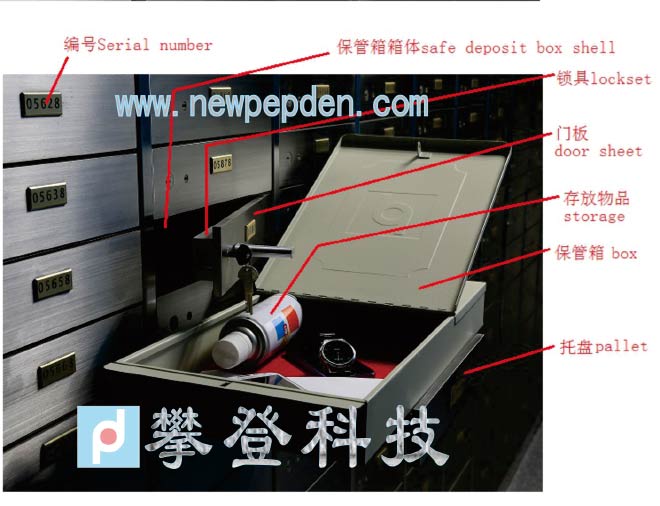

Inner box: the choice of the thickness of 0.80mm Sino-foreign joint venture production of high-quality cold-rolled galvanized sheet, the bottom of the installation of sliding steel ball to avoid the box in the process of access and the box between the diaphragm directly friction and damage to the box and box Body, to ensure that the box and box durable, at least the normal use of more than 50 years do not rust. With a lockable lock, cover three-quarters can be opened, after degreasing, rust, phosphating, electrostatic spray and other process, the surface smooth, no hand thorn, lining the flannel lining The inner box is light, firm and beautiful.
 Door: the use of 10mm thick imported SUS304 made of anti-magnetic stainless steel, which E, F, G-type large box door for the light alloy outsourcing 1.0mm thick SUS304 magnetic stainless steel plate, after drawing, grinding, water grinding polishing process, the formation of Uniform thickness of the horizontal stripes, the surface lines clear, no scratches, depression, chaos and other defects can. The front surface roughness of the door panel is not more than 1.6 microns and the back surface roughness is not more than 2.5 microns. Door gap: door gap ≤ 1.5 mm; door and the box gap between the open end of 1.5 + 0.2 mm. The gap above the door is 0.2-0.3 mm smaller than the clearance below, and the total gap is 1.2 + 0.3 mm.
Door twist: the use of the overall through the Tibetan hinge process, while hidden in the box, the appearance of beautiful appearance, easy to clean, the panel can open to 110 degrees to ensure that the long-term use of the door is not easy to sag, loose.
 Electroplating parts: all plated parts surface fine uniform, no defects, burnt, off, scratches, pinholes and other phenomena, the coating is not less than 12 microns, salt spray test (NSS experiment) 24 hours without exception. Welding parts: welding solid, solder joints beautiful, no Weld, slag, solder joints are too large, perforation and other phenomena; box no residue residue, the box structure of the combination of close, no undercut, crack; Is damaged by arc or splash.
 Numbers: Material for the ABS plastic, the surface of the golden yellow paint, uniform color, light can see the particles even the powder, the surface without scratches and damage, oil, alcohol, days that water scrub, and the door between the strong double-sided Adhesive bonding. Font color is red, computer carving, distributed evenly, straight, the same depth. Working platform: each group should be equipped with a pop-up stainless steel tray, the choice of SUS304 stainless steel and 3.0mm thick galvanized steel production, mouth surface with the same security door, the thickness of ≥ 9.0mm. Elegant and beautiful, for customers to temporarily placed within the box, in order to take items, carrying capacity ≥ 25Kg.
 Handrail ladder car: the use of stainless steel, 3, to facilitate the operation of customers up and down convenient, flexible and safe, mobile convenience. Safe deposit box main specifications
|
|||||||||||||||||||||||||||||||||
|
