Combination of coffers |
||
 The utility model relates to a combined Treasury, which is composed of a standard building block type wall panel, which is combined into the required shape and size of the safe warehouse according to the requirements of users.

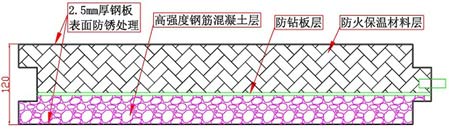

Tamper resistant material modular vault filled wall technology, six base single wall thickness reaches 120mm, drilling, cutting, fire prevention, explosion prevention and other functions, the security level is B, passing through the Ministry of public security type inspection.
With high-strength steel plate production, S-type pipe (within the high outside the low) design to ensure the safety of the library and 24 hours constant temperature and humidity, when the smoke, and temperature alarm start, the air conditioning The defender automatically closes the air conditioning drilling gate.
Each sub-board between the use of sub-mouth link, and in the closed beta with at least three M16 screw link fastening, the top and vertical walls of the entire hexahedron through the sub-mouth and M16 screw links to ensure that opaque, The outside can not be destroyed, its seismic and explosion-proof ability to be greatly guaranteed.
The portfolio is light in weight; the area is about 110 kilograms per square meter. Apply to the modern high-rise buildings on each floor to set up a vault.
The combination of treasury transfer convenience; in the era of modern rental business, involving the relocation of the practical point of business, the portfolio can be relocated with the new business point in the past, such as the need to expand, just increase the combination of wall panels can be expanded.
 Combination of vaults
|
||
|
