File Shelves |
||

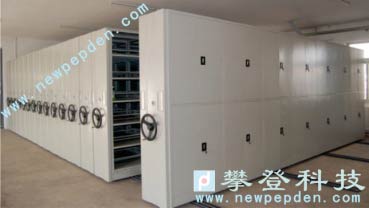

 It is also known as a compact cabinet, which can be understood as a shelf that is mounted on a base of a double-sided double-sided fixed frame and can be moved linearly along a small rail , According to the need to move more than a few shelves or separate. Manual and electric two manual, manual and hand-held and push-type, push-type and sub-track type and cantilever type. Walking direction of the horizontal and vertical points. The frame will be fixed channel into a mobile channel, so that the Treasury unit area on the file storage capacity increased, but the capacity of the warehouse floor bearing capacity is also high, according to China "archives building design specifications" provisions, bearing capacity per square Rice 1200 kg.For the organs, enterprises and institutions library materials, file room, sample room and other storage books, archives, financial documents, goods and traditional bookcases, bookshelves, shelves, file rack compared to large storage capacity, And more systematic; the contact surface between each column with a buffer, the top of the magnetic seal with dust board, the bottom of the anti-rat device, each column has a safety limit brake and anti-dumping device, Lock, for the overall lock, transmission through the finishing process, the use of precision bearings, flexible transmission smooth, inter-board spacing can be adjusted according to need; for the intensive storage of essential equipment.
Dense frame structure of its use and method of use:
First, use: mobile intensive cabinets are mainly used for schools, hospitals, enterprises and institutions file room, archival information, securities and other storage, with a closed, high space utilization, access convenience and so on.
Second, the specifications and performance: Specifications: Mobile intensive cabinet standard 2300 * 900 * 500, each length 900mm, the standard shelf for the six. (Specific specifications can be designed according to the actual needs of users) with anti-light, dust, shock, rodent control, moisture and other functions.
Third, internal structure:
1, mobile cabinet: intensive cabinet can be single or multiple columns in a rail walking together, each column has a brake device (lock handle). Self locking handle in the OFF position, the frame body can not move, in the ON position, the frame can be moved, a side panel of each column frame on a label box, mobile column chassis has anti reversing device, each combined box and each column is provided with a lock, for the whole of the lock, play the role of confidentiality, guide rail installed on the end of the limiting device.
2, access files: clockwise or counterclockwise rotating the handle movable frame will orbit the smooth walking gear two adjacent frame distance to a certain position (have enough position to access the data), the clockwise rotation of two column frame locking handle to the OFF position, then shake the handle two the body cannot move, and then enter the frame body between the access data (not lock the frame, such as when a rotation self-locking handle to rotate the handwheel to pull the locking handle, can not be forcibly locked, so as not to handle broken or damaged self-locking self-locking device).
3, dense cabinet lock: counterclockwise rotation of the self-locking handle to the ON position, the frame is self-locking is lifted. Shake the handle frame to walk. When all the shelves are close to the fixed column and can not be moved again, rotate the self-locking lever of the side row so that the side panel is self-locking and then rotate the lock in clockwise direction.
4, the height of the adjustment: dense cabinet each layer according to the standard height configuration. When need to adjust the layer high get lower plate, two side support plate to plate up, make the column decoupling, then upwards or downwards to the required height, insert the column hole and column up, then put the upper plate.
|
||
|
