Automatic safe deposit box |
||||||||||||||||||||||||||||||||||||
 Automatic safe deposit box system consists of central control system, robot handling mechanism, identification equipment, see the property, storage box, storage rack, library wall and maintenance of the Treasury doors and other components. Automatic access to the safe deposit box system without the intervention of bank staff or hire personnel, all work independently by the computer control system to complete, its greatest feature is the safety and privacy of the customers protection, much higher than the market existing machinery or Electronically controlled safe deposit box. All the storage boxes are placed in the hexahedral body constructed by the alloy steel plate in full compliance with the gold standard of the Ministry of Public Security. The security strength of the reservoir body reaches the security requirements of the public security department for the safe deposit box.
Automatic maintenance of the box body part (hexahedral) material using anti-theft alloy steel, emergency maintenance vault door security level equivalent to the Treasury door, set two sets of mechanical password lock, the anti-theft, anti-shock, fire completely in line with bank treasury standards, Department of safety center testing, to the safe deposit box warehouse requirements.
 First, the characteristics of automatic safe deposit box
High security: the safe and reliable vault with anti-theft function, automatic security system can record the customer out of the situation and operating conditions, the library is equipped with closed-circuit monitoring, vibration alarm, smoke alarm. Concealed Maintenance Channel The vault door must be opened at the same time as the bank and my companys maintenance engineers are present to ensure that the warehouse is secure.
Easy installation: equipment for the assembled modular design, standardized, small, small footprint, easy installation and no mud works, the impact on the surrounding environment is small. Facilitate the relocation adjustment.
Business management unmanned: the identity of the identification of customers, operation guide, safe deposit box to take out and return, the use of records and all the operating procedures of all automation, saving bank manpower.
Provide high-level service: unmanned operation to fully protect the privacy of the room, customers enjoy high-level service.
The fully automated safe box is available 24 hours a day and can be used in a 24 hour self service bank or a large bank center (VIP room).
Into the see the property room must hold a safe deposit box dedicated IC card to identify the identity, if you look at the use of objects, the lights will show that customers are "in use", this time even if the system to confirm the IC card is correct will not open the property control.
Customers to see the property after the property access control automatically locked, the customer once again use the IC card + password or fingerprint to confirm the identity of the safe deposit box automatically sent to the library from the library, safe deposit box access port automatically open.
Customers in the property room to stay too long (limited time set by the bank) system will automatically voice and text prompts customers or alarm.
After the end of the customer access and lock the safe deposit box, the safe deposit box access port is automatically closed, the safe deposit box is automatically sent back to the library, and later (5 seconds or so), the customer can use the key and the IC card to open the item The door.
To provide emergency alarm button and help phone, you can connect the bank internal alarm system or 110 network alarm system.
Second, the automatic safe operation process
  Third, the bank set up automatic safe deposit box business has the following important significance
Fully embodies the concept of uninhabited banks, unrelated banks are related equipment;
Open a safe deposit box to expand the scope of customers, VIP customers to provide special services, increase the "elite deposit";
Fully and effectively highlight the image of the bank, improve competitiveness
Reduce bank management costs, improve management security.
Banks do not need to build vaults, relocate or adjust easily to reduce duplication of investment.
Fourth, automatic safe deposit box specifications
Fifth, the basic parameters of automatic safe deposit box
Six, safe deposit box Environmental requirements: 1, safe deposit box warehouse size (including objects) long × width × height (mm): according to the actual size of the actual.
2, see the size of objects between the length × width × height (mm): 1560 × 1120 × 2500.
3, the ground load: the requirements of the ground floor carrying capacity should be greater than 1000Kg / ㎡.
4, automatic safe box from the surface to the ceiling clearance requirements to reach more than 2800mm.
5, the warehouse is strictly prohibited around the spray device, to prohibit the passage of water. Fire using gas fire.
6, safe deposit box area reserved for electricity that is 220VAC.
7, safe deposit box area reserved for more than two connected network control room network cable interface;
8, see the need for ventilation between the room (air conditioning outlet), to ensure that the customers environment comfortable.
9, the security environment: a fire, security basic requirements, automatic safe deposit box itself is equipped with infrared alarm, vibration alarm, high temperature alarm and monitoring system and other safety facilities.
Seven, removable capacity
I am the company to provide the production of Pepden technology card automatic safe deposit box at any time in accordance with the requirements of the bank to move to the designated location.
Eight, safe deposit box management control system
1, the software introduced
 Through years of safe deposit box sales, planning practice, our company found that traditional, simple safe deposit box management methods can not meet the current safe deposit box traffic, requiring high safety factor (customer safety, data security, etc.) characteristics. For this reason, our company has summed up the experience of many years of safe deposit box on the basis of the development of this set of its own intellectual property custodian computer management system designed to address the current safe deposit box management, management encountered in the old management approach can not solve the problem , So that the safe management of the safe, automated, standardized. Can be customized network functions, including: network statistics, network query, network management and customer operation part of the renewal, data modification, query and so on.
At present, the management system in the identity authentication, financial statements, data security, system security, network management and many other aspects are in the domestic leading position. Mainly the following:
A, security
First, data security. The database for climbing the Vault software system uses Microsoft SQL2000 or Access2000. The software can run on window2000 or Window XP, with a high degree of reliability and security. Plus the software on the fault-tolerant backup means to ensure that the data foolproof.
Second, the safety of customers. The system uses strict means of identification to ensure that the customers property is not frightened. Climbing Vault Software System Fingerprint recognition systems are one of the safest fingerprint identification systems on the market. The use of the United States U.are.U fingerprint fingerprint identification system, through strict means of identification, efficient and safe management of the work of the safe deposit box. U.are.U fingerprint instrument with three-dimensional living characteristics, to accept the direction of the input fingerprint, even if the rotation is 360 degrees, the identification system is the markets most secure one of the fingerprint identification system.
B, ease of use
System software uses a Windows graphical interface, coupled with the user-friendly design of the software, the operator is easy to operate directly, easy to maintain.
C, scalability and adaptability
As a result of the banks safe deposit box business and accounting differences, the safe deposit box management software put forward a variety of different needs, for this situation, we in software development, the use of advanced modular, parametric design, according to different needs Using different modules, parameter settings, to meet the different needs of the banks.
2, management of the operation process
Account operation management
 After the completion of the relevant procedures for the use of the relevant procedures by the bank administrator in the automatic custody box management system terminal for the relevant registration, such as: customer name, gender, document number, address, telephone, box, the use of time, Deposit, fingerprint or password. After the completion of all the use of the operation by the customer to complete their own without the need for bank staff management. Automatic storage box management system terminal will automatically transfer account information to the control system and save it.
Customer out of the box operation
The first step
 Customers can use the IC card to open the door can be used to see things, as shown in Figure
That is, the IC card in the room to see the door to read the card area sensor look, look at the door between the door will automatically open, Note: only in the look of objects between the use of no one can be opened, when the people are in use , "In use" just waited, this time only waiting to be used to other unattended objects to use.
The second step
Customer identification confirmation, as shown
When the customer into the room after the object to see the door after the door locked, the console display will automatically prompt the brush IC card, this time the customer again IC card in the console icon reader area induction, the display automatically pops up Identity confirmation mode dialogue menu, the customer with your fingers on the screen "fingerprint" or "password" button at the point,
When the "Fingerprint" button is pressed, the display will display the Fingerprint Recognition dialog box. The client will tap the corresponding finger (s) according to the voice prompt on the system voice prompt or the text prompt on the menu:
 When the customer selects the "password" button, the screen automatically pops up the password keyboard, this time through the password keyboard to enter the corresponding password.
Note: The identification method and combination must be consistent with the agreement when opening an account, such as: a person with a fingerprint or fingerprints of any one fingerprint or any two or more fingerprints, or must be two or more at the same time, or fingerprint Plus password, or only password, and so on.
 The third step

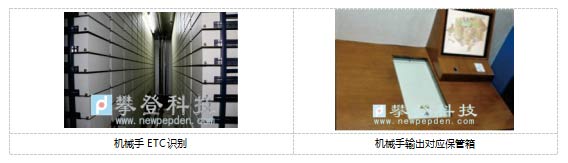

Unpacking operation: When the customer (one or more people) and other identification control system to confirm, the storage box library robot will be based on confirmation information further through the ETC RF technology to identify the corresponding box and automatically output:
 The fourth step

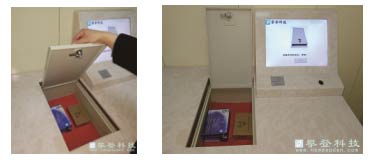

Unpacking: When the door of the console is fully open, the customer opens the safe with the mechanical key to carry the box.
 The fifth step
After the completion of the operation, the customer closes the lid and locks it, pulls out the key, the console exit door will automatically shut down, the robot will automatically send the storage box into the warehouse, only in the robot will keep the box Into the warehouse after the display will prompt the customer can leave, this time, the customer can use the IC card to see the room door to read the card area sensor look, look at the door will automatically open the door, the customer can leave the room.
Note: all the operation process and time, the system will automatically record the archive for future inquiries.
|
||||||||||||||||||||||||||||||||||||
|
